The EPG Flow Meter, a component of the EPG Flow Meter Liquid Flow Monitoring System, is used to monitor liquid flow and control equipment.

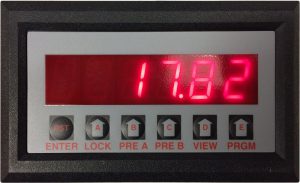

The EPG FMK-400 is a rate meter & totalizer with 6 digit LED display. The first of two available outputs can be programmed as a total counter or rate meter. The second relay can be used to create a scaled pulse output. The end user can easily view rate, total and grand total.

Features:

• Displays Rate and/or Total
• 6 Digit LED Display
• Simple to Program
• Memory: EEPROM stores data for 10 years if power is lost
• Operating Temp: 32°F to 130°F (0° to 54° C)
• Field Programmable
• Works With Any Kind of Flow Sensor with a Pulse Output
• Low Cost
• Input Power: 110 VAC ± 15% or 12 to 15 VDC
• Analog 4-20mA Output Option Available
• RS232 Communication Option Available



The EPG Flow Meter can also be used as a cost effective local field display, providing additional equipment control options for telemetry and SCADA Systems.

For more liquid level system components, see: Monitoring Systems and Components

For more information, please call EPG Companies Inc. at 1-800-443-7426

---
