Vapor extraction, the removal of volatile organic compounds (VOCs) from soil using vacuum, has proven to be a highly efficient and cost-effective method of in-situ soil remediation.

EPG's vapor extraction equipment and air sparge systems are available pre-packaged, and skid, base or stand mounted. Components may also be purchased separately.

Contact EPG Companies Inc. at 800-443-7426 or by email with your specific application.

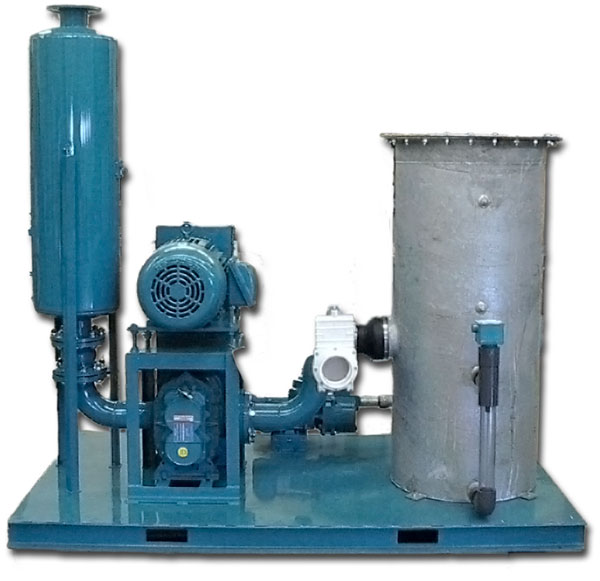

Typical Vapor Extraction System - Skid Mounted

EPG Vapor Extraction Systems include the following as standard features:

• Vapor Extraction Vacuum Blower & Motor
• Condensate Filter Separator
• Vacuum Relief Valve
• Air Dilution Valve
• Vacuum Gauge
• Control Panel
• Base Skid

The EPG Vapor Extraction Blower is selected based on the most effective solution to the work requirements of each site.

Common EPG Vapor Extraction Blowers include:

• Regenerative
• Centrifugal
• Multi-Stage Centrifugal
• Positive Displacement
• Liquid Ring

Options include:

• 24 Hour or 7 Day Blower Cycle Timer
• Elapsed Blower Run Time Meter
• Inlet and Outlet Silencers
• Temperature Gauge
• Air Flow Sensor, Air Flow Meter
• Condensate Pump Out Package
• And many others

Pilot Studies:

The EPG Portable Vapor Extraction System is perfect for conducting pilot studies on a potential vapor extraction site. This system can determine whether the technology is feasible and will further define design parameters for a complete system.

Contact EPG Companies Inc. at 800-443-7426 or by email for more information.

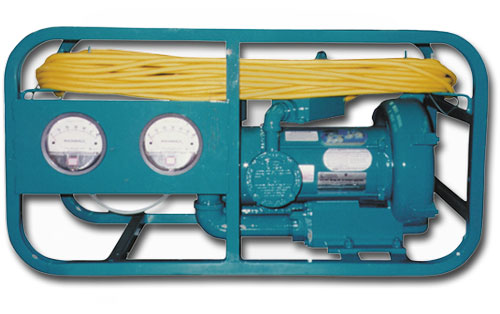

Portable Vapor Extraction System

VES-RT1, vapor extraction system with regenerative blower and explosion-proof control panel.

VES-RT7.5, vapor extraction system with regenerative blower and optional condensate pump and discharge silencer

VES-CB20, vapor extraction system using a centrifugal blower
