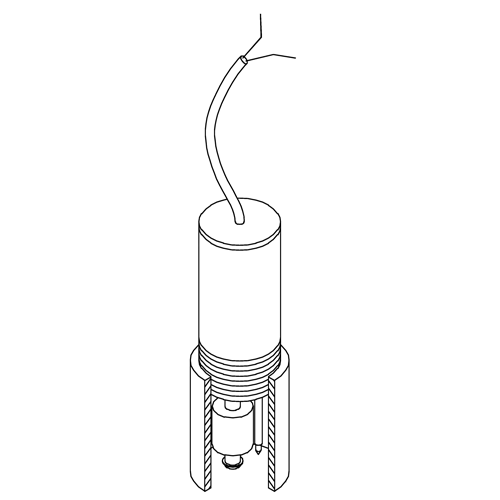

2-Wire:

EPG's 2-Wire Interface Sensor is a small diameter, vertically suspended, product/water sensor that incorporates a normally closed (N.C) level displacement sensor (float) with normally open (N.O.) conductivity probes. The level displacement sensor floats in both water and product. The combination of both level displacement sensor and conductivity probes allows the interface sensor to detect when it is positioned in product or water.

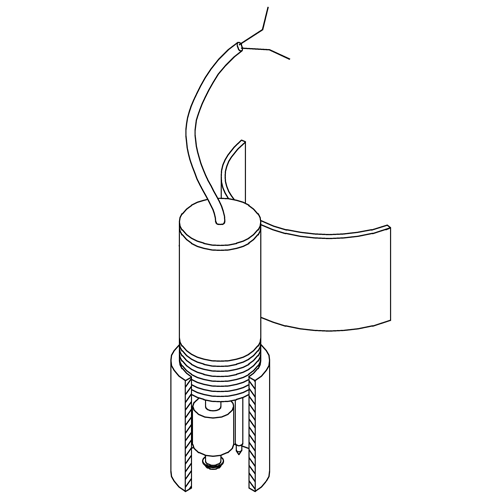

2-Wire with Bracket:

EPG's 2-wire interface sensor is also available with a bracket. This sensor mounts directly to a 4" submersible product recovery pump.

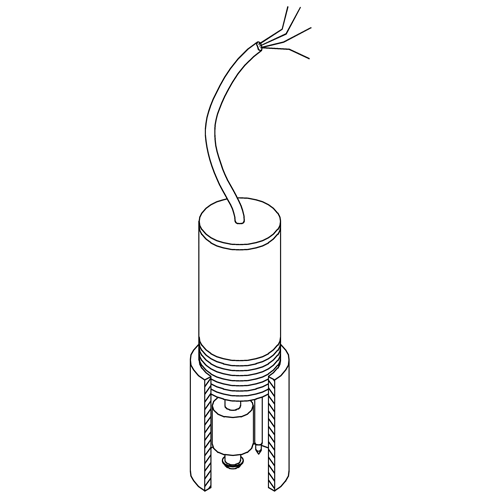

4-Wire:

EPG's 4-Wire Interface Sensor is a small diameter, vertically suspended, product/water/air sensor that incorporates a normally closed (N.C) level displacement sensor (float) with normally open (N.O.) conductivity probes. The level displacement sensor floats in both water and product. The combination of both level displacement sensor and conductivity probes allows the interface sensor to detect when it is positioned in product, water or air.

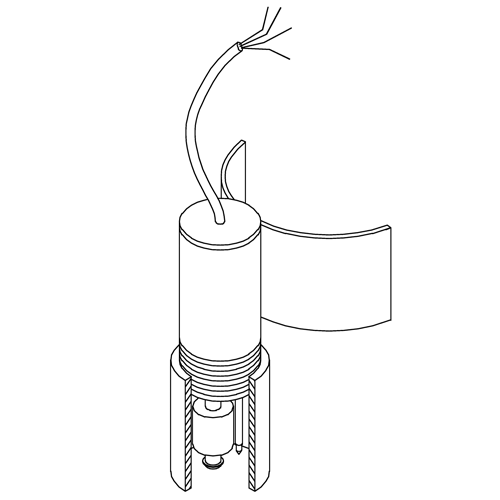

4-Wire with Bracket:

EPG's 4-wire interface sensor is also available with a bracket. This sensor mounts directly to a 4" submersible product recovery pump.

For more information, please call EPG Companies Inc. at 1-800-443-7426
