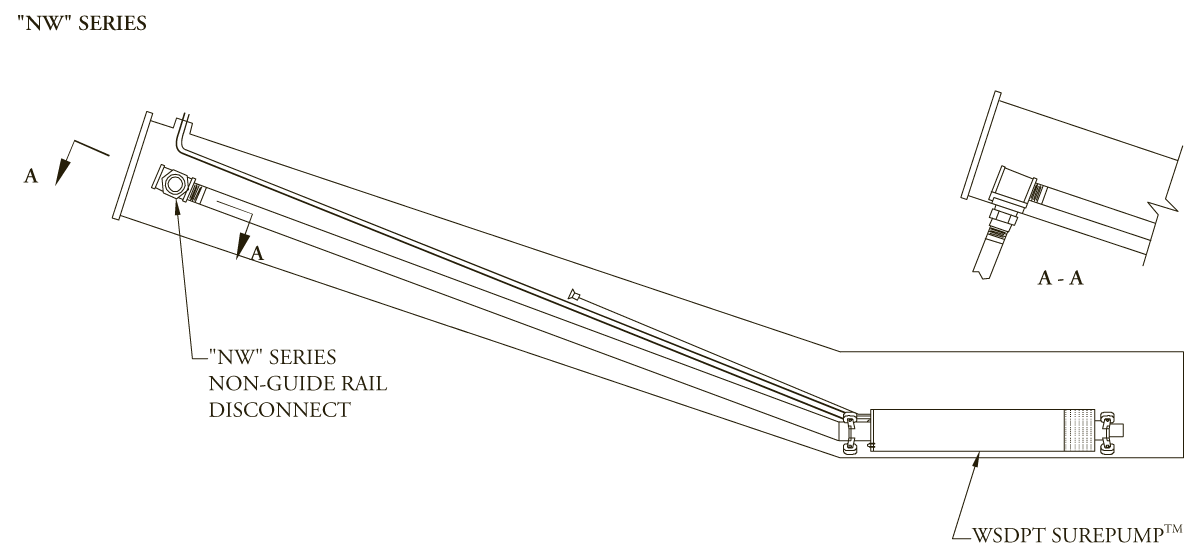

EPG’s Pump Discharge Disconnect Adapters are designed for leachate, monitoring and remediation piping applications. The "NW" Series disconnect adapters fasten through a riser or sump wall. Now personnel can easily and safely make or break pump discharge connections without entering hazardous locations.

Related Pages:

Guide Rail Disconnect Adpaters

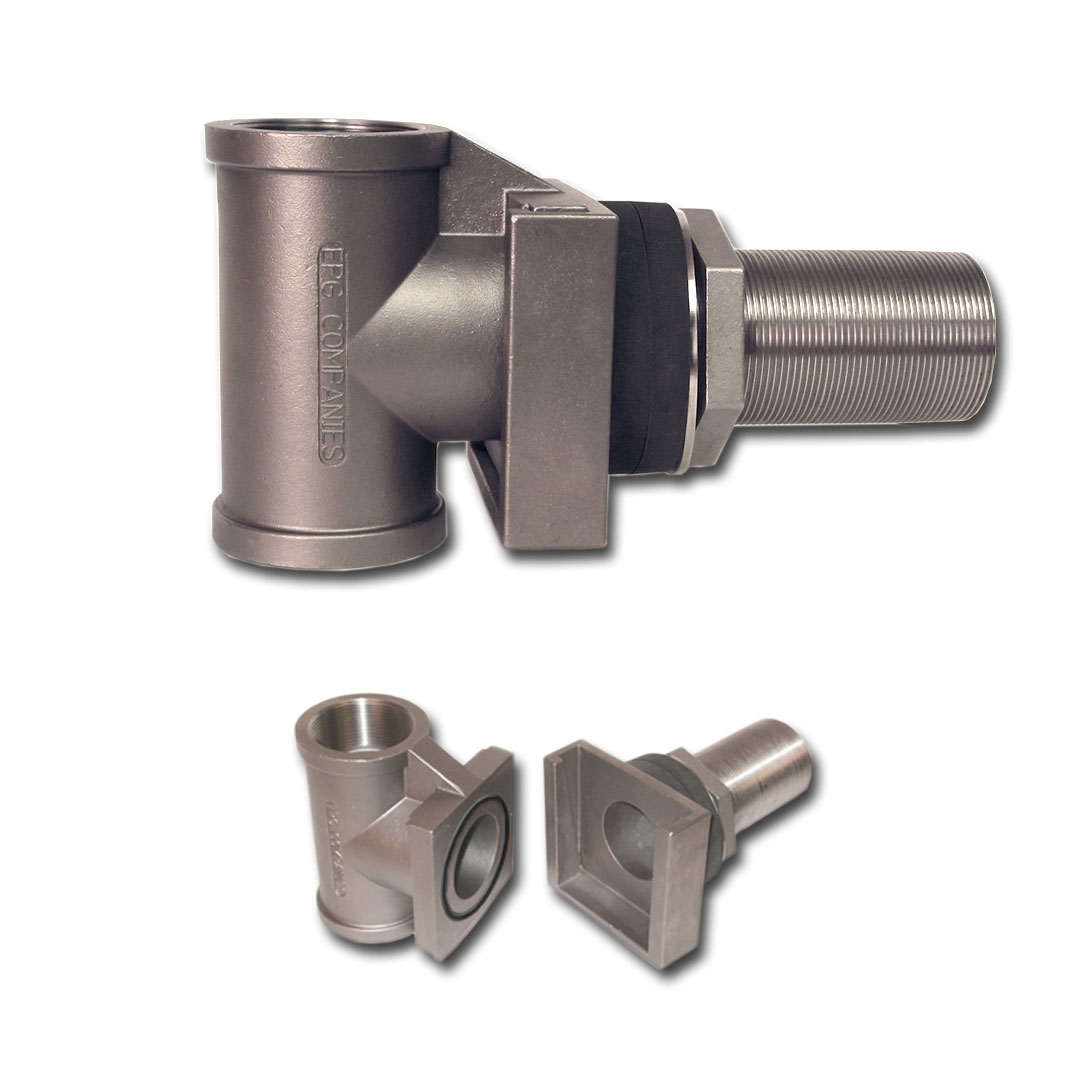

"NW" Series (Stainless Steel)

EPG’s Pump Discharge Disconnect Adapters are designed for leachate, monitoring and remediation piping applications. The "NW" Series disconnect adapters fasten through a riser or sump wall. Now personnel can easily and safely make or break pump discharge connections without entering hazardous locations.

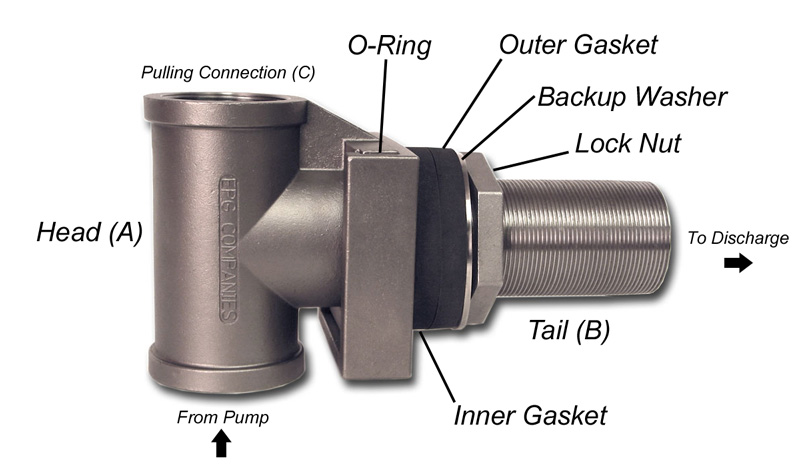

• Solid 316 or 304 Stainless Steel construction
• Insert and housing have tapered slide fittings and O-ring seals, to maximize liquid-tight slip joint sealing
• Designed for maximum service life and ease of maintenance
• Built in 90° elbow with blind top that has female threads to accept threaded pipe to facilitate easy removal
• Reduces the need for personnel to enter hazardous locations to make pump connections and/or disconnections
• EPDM gasket for inner and outer wall with a washer and lock nut to make a gas tight seal
• Extended length discharge allows adapter to fit through 0.25” to 4” material wall thickness
• 1.5”, 2”, 3”, 4″, and 6” NPT sized fittings for pump, lift-out, and discharge pipes
