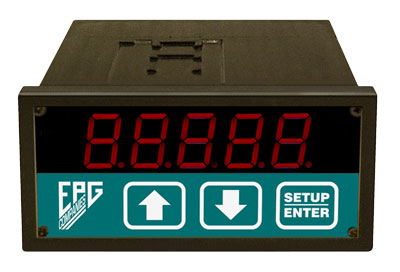

The LevelMaster™ CHS1000 Liquid Level Meter, a component of the EPG LevelMaster™ Liquid Level Measuring System, is used to monitor liquid levels and control equipment.

The microprocessor-based digital display level meter is dependable, easy to use and highly accurate. Unlike other meters, programming the CHS1000 Liquid Level Meter can be completed in a few easy steps. Three outputs allow set up of three separate functions (ie. two pumps lead-lag mode and a high level alarm or a high/high high or high/low level alarm plus one pump). The meter has a nominal display rate of 2.5 updates per second, a response time of 500 ms per input step, will store the highest and lowest readings in meter memory until cleared and a built-in 24VDC Power Supply for 4-20 mA sensors.

• An easy-to-use, accurate level meter to continuously monitor almost any liquid
• Values can be set to any engineering unit and any measurement increments
• Compatible with EPG’s SurePump™ Sump Drainer or can be used in stand alone applications
• Self-contained, solid-state system with no moving parts
• Factory tested and ready for immediate installation
• Easy to install, simple to operate



Available Options:

• Modbus port facilitating accurate data acquisition via radio or RTU transmission
• Seperate 4-20mA output

For more liquid level system components, see: Monitoring Systems and Components

---

The CHS1000 Level Meter can also be used as a cost effective local field display, providing additional equipment control options for telemetry and SCADA Systems.

For more information, please call EPG Companies Inc.

*The CHS1000 is a direct replacement for the CH1000 (no longer available)
